Re: GA-H55N-USB3(rev. 1.0) HDMI
« Reply #30 on: June 16, 2011, 07:59:09 pm »
*
For the PCH temperature i think that your CPU cooler not send airflow so around the CPU to the PCH

Test with the stock cooler

Look my old post

http://forum.giga-byte.co.uk/index.php/topic,2559.msg15396.html#msg15396

Pierre


« Last Edit: June 16, 2011, 08:37:29 pm by Dark Mantis »
GA-X58A-UD5 I7 930
6x2Go KINGSTON 9905403-084
ENERMAX Modu 82+
Sharkoon REBEL12
2*HD5770SingleSlot+PCI-HD4350
2xSENSY 26'
2xBOX 5HD HotPlug
3xBOX 34HD MaxinPower
2x AD4SR5HPMU Addonics 8x1ToWDGreen
4x 1TO RAID10 ICH10+1 BACKUP OS
2 * RR622 HighPoint
Sata 88SX7042
AverMedia H727

Re: GA-H55N-USB3(rev. 1.0) HDMI
« Reply #31 on: July 16, 2011, 02:59:24 pm »
this motherboard have a lot of problems...

i have this motherboard with:
I3 550
4 gb kingston 1333
hd 500gb western digital blue
palit GT430
cooler master 550w silent
case is a cooler master Elite 360 witha  good Air flow with 2x12" and 1x8"
tried with both stocked cpu cooler and with a new Thermaltake SlimX3

this is what happen...

Watching blu-ray movie (1080p) sometimes...almost always,
computer freeze and shut down!
After this if i try to turn on the computer again, it freeze again before
i see the desktop....
so i have to wait at last 1 hour to see the computer start again.



If i start the computer i see the CPU temp around 28° and the
motherboard/chipset temp at 35°....

after 5 minutes cpu temp is always the same and the motherboard/chipset
is around 55/57°!!! Absurd!

Absurd is that the computer freeze and shut down without any reason..message...event...
How i know what is the cause?

BHA!!!!!!!

With my other HTPC (with an asus motherboard and almost the same component) never had a
single problem, never.

Re: GA-H55N-USB3(rev. 1.0) HDMI
« Reply #32 on: July 16, 2011, 04:05:34 pm »
just to know, someone from gigabyte is around?
thx   ;D ;D ;D ;D ;D ;D ;D ;D ;D ;D ;D

Dark Mantis

  • *
  • 18405
  • 414
  • 10typesofpeopleoneswhoknow binaryandoneswhodont
    • Dark Mantis
Re: GA-H55N-USB3(rev. 1.0) HDMI
« Reply #33 on: July 16, 2011, 04:42:05 pm »
There are not many times that Gigabyte  representatives come on these forums apart from runn3R who is the forum administrator and is here most days.

Quote
case is a cooler master Elite 360 witha  good Air flow with 2x12" and 1x8"

Can you explain please as it doesn't make sense  ??? ???
« Last Edit: July 16, 2011, 04:46:22 pm by Dark Mantis »
Gigabyte X58A-UD7
i7 920
Dominators 1600 x6 12GB
6970 2GB
HX850
256GB SSD, Sam 1TB, WDB320GB
Blu-Ray
HAF 932

Gigabyte Z68X-UD5-B3
i7 3770K
Vengeance 1600 16GB
6950 2GB
HCP1200W
Revo Drive x2, 1.5TB WDB RAID0
16x DLRW
StrikeX S7
Full water cooling
3 x 27" Iiy

Re: GA-H55N-USB3(rev. 1.0) HDMI
« Reply #34 on: July 16, 2011, 05:12:52 pm »
Quote
case is a cooler master Elite 360 witha  good Air flow with 2x12" and 1x8"

Sorry i mean:
1x12" fan (air in, at the left side of the case, just on the cpu)
1x12" fan (air out, up in the case )
1x8" fan (air in, at the bottom of thecase)

hope its better!


Anyway, looks like there is no solution to this, or i'm wrong?
I read in many forum that a lot of peoples have this "strange" problem..."freeze and shut down",
not to mention about the high temp of the chipset/motherboard...!
« Last Edit: July 16, 2011, 05:20:29 pm by bbwalker »

Dark Mantis

  • *
  • 18405
  • 414
  • 10typesofpeopleoneswhoknow binaryandoneswhodont
    • Dark Mantis
Re: GA-H55N-USB3(rev. 1.0) HDMI
« Reply #35 on: July 16, 2011, 05:19:52 pm »
Thanks. I understand you better now but I think that your measurements are somewhat off as there is no way you have a couple of 12" fans in your case. It also makes a difference how the fans are configured but your seem to be ok in that respect as you would have a slight positive pressure inside the case which is perfect.
Gigabyte X58A-UD7
i7 920
Dominators 1600 x6 12GB
6970 2GB
HX850
256GB SSD, Sam 1TB, WDB320GB
Blu-Ray
HAF 932

Gigabyte Z68X-UD5-B3
i7 3770K
Vengeance 1600 16GB
6950 2GB
HCP1200W
Revo Drive x2, 1.5TB WDB RAID0
16x DLRW
StrikeX S7
Full water cooling
3 x 27" Iiy

Re: GA-H55N-USB3(rev. 1.0) HDMI
« Reply #36 on: July 19, 2011, 08:33:04 am »
Quote
Thanks. I understand you better now but I think that your measurements are somewhat off as there is no way you have a couple of 12" fans in your case. It also makes a difference how the fans are configured but your seem to be ok in that respect as you would have a slight positive pressure inside the case which is perfect.

yes, there are 2 x 12" fans.

anyway, do you think  this'll be fixed by gigabyte?
Its ok that my cpu is at 29° C and my motherboard temp at 57/59° C ??
And of course its not normal that it randomly freeze and turn off...


bye!
« Last Edit: July 19, 2011, 08:33:47 am by bbwalker »

Re: GA-H55N-USB3(rev. 1.0) HDMI
« Reply #37 on: July 19, 2011, 03:54:10 pm »
Better su send it to RMA?
or Trash it....??

Dark Mantis

  • *
  • 18405
  • 414
  • 10typesofpeopleoneswhoknow binaryandoneswhodont
    • Dark Mantis
Re: GA-H55N-USB3(rev. 1.0) HDMI
« Reply #38 on: July 19, 2011, 10:32:14 pm »
When it freezes what is the motherboard temperture then ?

What F5BJR suggests is a common issue when the stock cooler is changed for  a more efficient but differently angled heatsink and fan on the CPU. Have you tried replacing the standard heatsink/fan assembly ?
Gigabyte X58A-UD7
i7 920
Dominators 1600 x6 12GB
6970 2GB
HX850
256GB SSD, Sam 1TB, WDB320GB
Blu-Ray
HAF 932

Gigabyte Z68X-UD5-B3
i7 3770K
Vengeance 1600 16GB
6950 2GB
HCP1200W
Revo Drive x2, 1.5TB WDB RAID0
16x DLRW
StrikeX S7
Full water cooling
3 x 27" Iiy

F5BJR

  • 478
  • 31
Re: GA-H55N-USB3(rev. 1.0) HDMI
« Reply #39 on: July 19, 2011, 11:34:27 pm »
*
My chipset is also hot that is normal max is some 100 °C ( i have 54 °C at this time  but that is summer !! )

I have added  a fan for the chipset and also for my 2 * HD5770 because with my Adaptec RAID long card the path of fresh air is not great for the second graphics card  !!

Pierre





GA-X58A-UD5 I7 930
6x2Go KINGSTON 9905403-084
ENERMAX Modu 82+
Sharkoon REBEL12
2*HD5770SingleSlot+PCI-HD4350
2xSENSY 26'
2xBOX 5HD HotPlug
3xBOX 34HD MaxinPower
2x AD4SR5HPMU Addonics 8x1ToWDGreen
4x 1TO RAID10 ICH10+1 BACKUP OS
2 * RR622 HighPoint
Sata 88SX7042
AverMedia H727

F5BJR

  • 478
  • 31
Re: GA-H55N-USB3(rev. 1.0) HDMI
« Reply #40 on: July 19, 2011, 11:42:17 pm »
*
if you have : motherboard temp at 57/59° C

You have a problem with your fan's case or the external temperature is very hot

Pierre



GA-X58A-UD5 I7 930
6x2Go KINGSTON 9905403-084
ENERMAX Modu 82+
Sharkoon REBEL12
2*HD5770SingleSlot+PCI-HD4350
2xSENSY 26'
2xBOX 5HD HotPlug
3xBOX 34HD MaxinPower
2x AD4SR5HPMU Addonics 8x1ToWDGreen
4x 1TO RAID10 ICH10+1 BACKUP OS
2 * RR622 HighPoint
Sata 88SX7042
AverMedia H727

Re: GA-H55N-USB3(rev. 1.0) HDMI
« Reply #41 on: July 21, 2011, 02:42:21 pm »
Quote
What F5BJR suggests is a common issue when the stock cooler is changed for  a more efficient but differently angled heatsink and fan on the CPU. Have you tried replacing the standard heatsink/fan assembly ?

Yes, same problem!
Thats why i changed with a better one.

This is the first time i have a gigabyte motherboard.
I have 4 pc, 2 for work and 2 htpc, all asus except this one with
gigabyte motherboard.


Quote
if you have : motherboard temp at 57/59° C

You have a problem with your fan's case or the external temperature is very hot

Pierre

Do you think so?

Why the "CPU" temp is only 27/29° while the motherboard
temp is at 57/59° C?
Even with the "case Open"?
Thats strange...:!!

If i touch the chipset heatsink is very very very very HOT!


anyway...

could be the motherboard temp at 57/59° C that cause, while watching HD Movie
to freeze and shut down?
I noticed also that if i use windows media  player to see the movie looks like all is ok,
if i use total media theater, that use hardware acceleration, it freeze and shut down,
almost all the time.....
« Last Edit: July 21, 2011, 03:56:45 pm by bbwalker »

F5BJR

  • 478
  • 31
Re: GA-H55N-USB3(rev. 1.0) HDMI
« Reply #42 on: July 21, 2011, 06:04:13 pm »
*
That is your chipset or your motherboard ?

For the chipset that is normal

Pierre

GA-X58A-UD5 I7 930
6x2Go KINGSTON 9905403-084
ENERMAX Modu 82+
Sharkoon REBEL12
2*HD5770SingleSlot+PCI-HD4350
2xSENSY 26'
2xBOX 5HD HotPlug
3xBOX 34HD MaxinPower
2x AD4SR5HPMU Addonics 8x1ToWDGreen
4x 1TO RAID10 ICH10+1 BACKUP OS
2 * RR622 HighPoint
Sata 88SX7042
AverMedia H727

Re: GA-H55N-USB3(rev. 1.0) HDMI
« Reply #43 on: July 22, 2011, 03:35:46 pm »

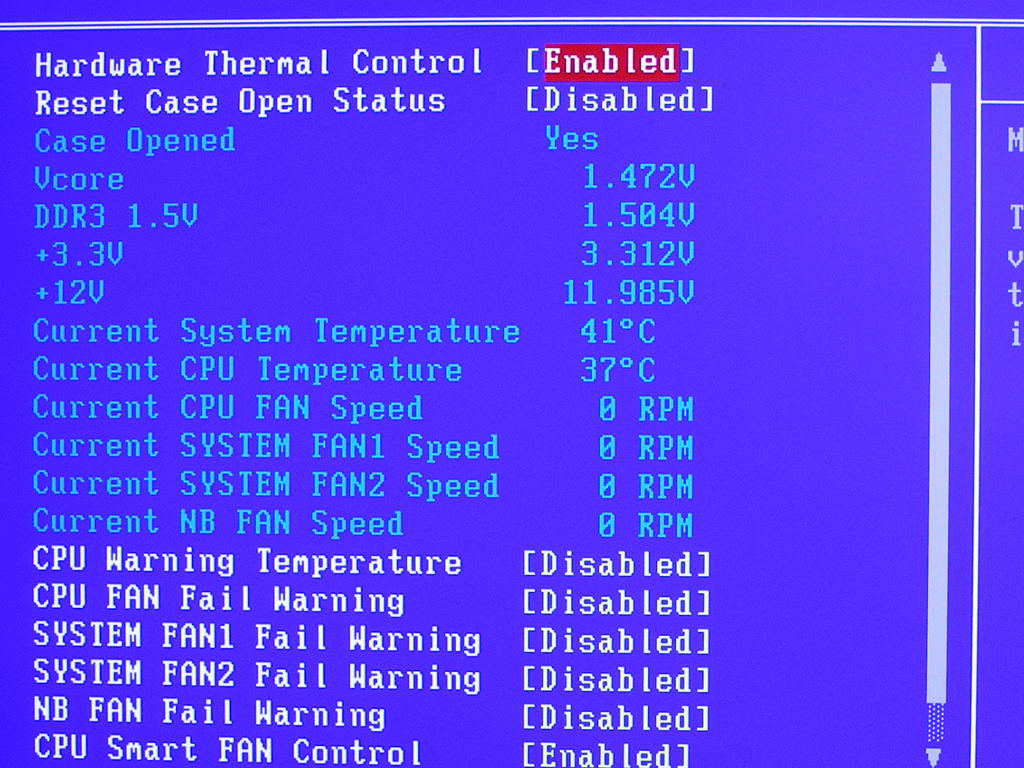

when i say "57/59° C" is what i see into the bios under "Current System Temperature"!
like in this pic:


(of course this is not my temp!!)

the heatsink i mean (thats really tooooo HOT) is the one on the pic, at the left side near the sata connectors:


Dark Mantis

  • *
  • 18405
  • 414
  • 10typesofpeopleoneswhoknow binaryandoneswhodont
    • Dark Mantis
Re: GA-H55N-USB3(rev. 1.0) HDMI
« Reply #44 on: July 22, 2011, 08:07:42 pm »
Hi

If you are worried about it I would suggest a bit of customising. Add a dedicated fan to cool the heatsink in perticular. Sometimes this is the best way to tackle it.
